MenuMessage

MenuMessage displays a contextual call-to-action card inside Firefox’s panel menus: the App Menu (hamburger) and the PXI Menu (Firefox Accounts avatar panel).

Surfaces

Surface	`testingTriggerContext`	Supported `messageType`
App Menu	`app_menu`	`fxa_cta`, `default_cta`

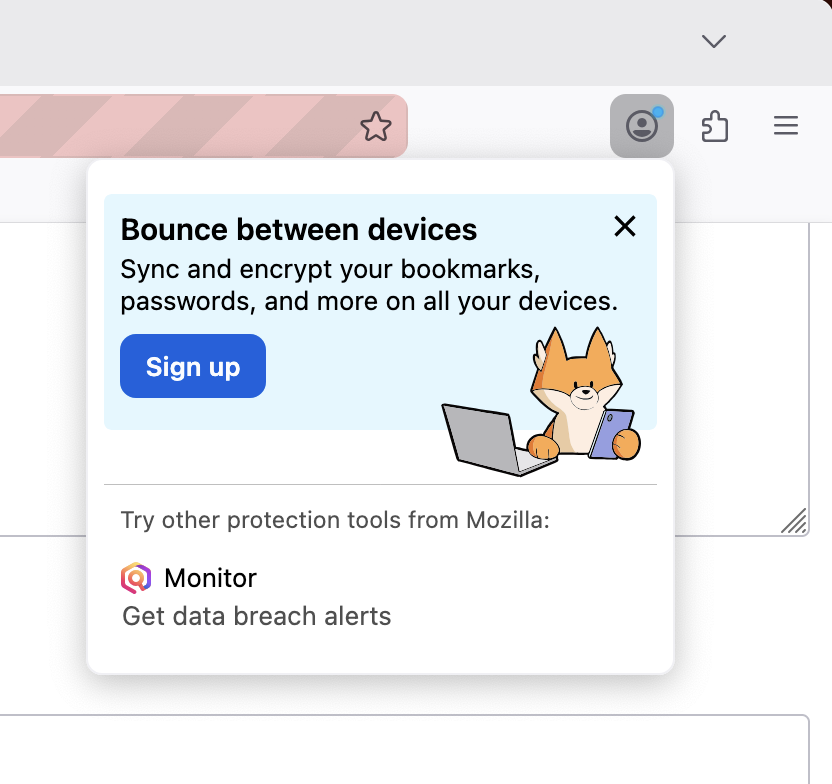

PXI Menu	`pxi_menu`	`fxa_cta` only

Message Types

fxa_cta: Firefox Accounts sign-in prompt. Hidden for signed-in users unless allowWhenSignedIn: true. Available in both the App Menu and PXI Menu.
default_cta: General CTA. App Menu only. Always shown regardless of sign-in state.

Layouts

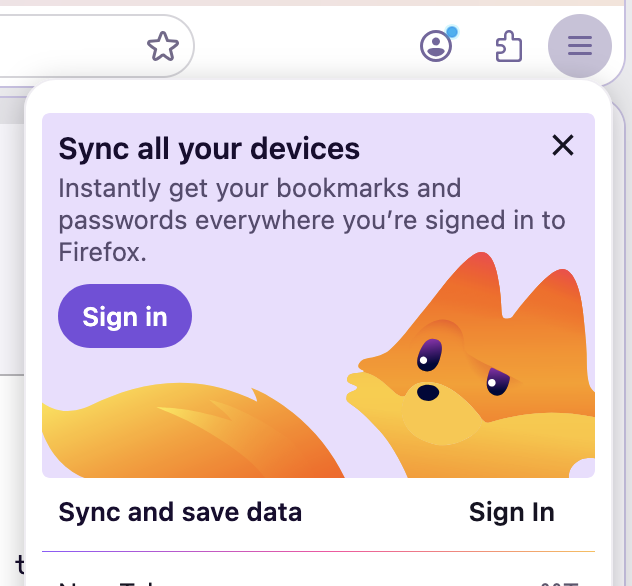

column (default): Illustration above text with a button stack below. Set imagePosition: "bottom" to render the illustration full-bleed at the bottom of the card instead.
row: Text on the left, button and illustration on the right.

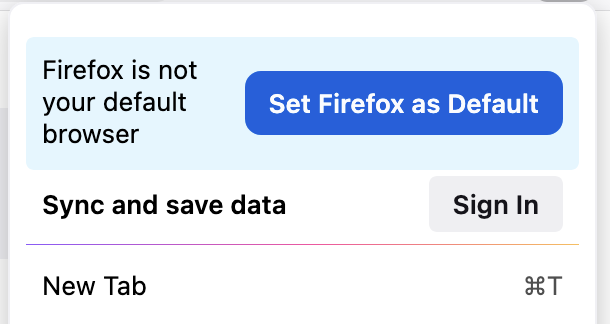

simple: Single row with primary text and button only — no image, secondary text or close button.

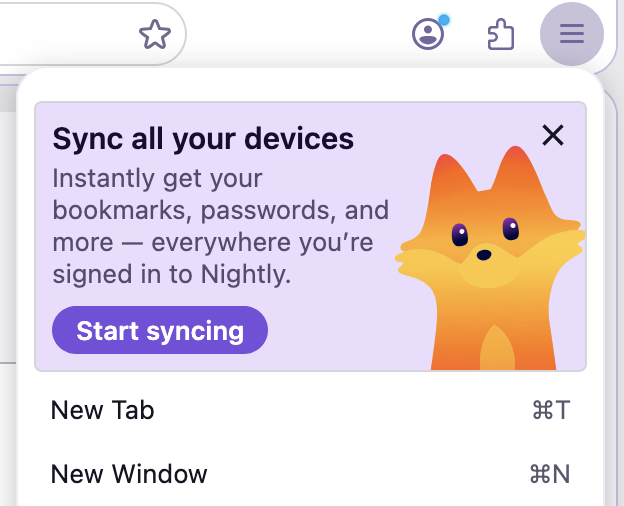

split: Two-column layout (illustration and copy). Use imagePosition "start" or "end" to swap which side the illustration sits on and "bottom" to have it aligned block-end. Default is "end".

Testing Menu Messages

Previewing the layout options and configurations can be done through ./mach storybook or through about:asrouter, as seen below. See the MenuMessage Schema for the available configuration options.

Using ASRouter devtools:

Set browser.newtabpage.activity-stream.asrouter.devtoolsEnabled to true in about:config
Go to about:asrouter
Select panel as the provider and find messages with "template": "menu_message"
Click Show — the testingTriggerContext field on the message determines which menu surface is simulated (app_menu or fxa_cta).
Paste custom JSON in the text area and click Modify to preview changes

Example JSON

{
    "id": "EXAMPLE_PXI_MENU_SPLIT_LAYOUT",
    "template": "menu_message",
    "content": {
        "layout": "split",
        "messageType": "fxa_cta",
        "primaryText": {
            "string_id": "fxa-menu-message-sync-devices-primary-text"
        },
        "secondaryText": {
            "string_id": "fxa-menu-message-sync-devices-secondary-text2"
        },
        "primaryActionText": {
            "string_id": "fxa-menu-message-sign-in-button"
        },
        "imageURL": "chrome://browser/content/asrouter/assets/kit-peek.svg",
        "imageVerticalBottomOffset": -8,
        "imagePosition": "bottom",
        "imageWidth": 95,
        "primaryAction": {
            "type": "FXA_SIGNIN_FLOW",
            "data": {
                "where": "tab",
                "autoClose": false
            }
        },
        "closeAction": {
            "type": "BLOCK_MESSAGE",
            "data": {
                "id": "EXAMPLE_PXI_MENU_SPLIT_LAYOUT"
            }
        }
    },
    "trigger": {
        "id": "menuOpened"
    },
    "testingTriggerContext": "pxi_menu",
    "groups": [],
}

Schema

MenuMessage.schema.json
